Models

Four models for every need.

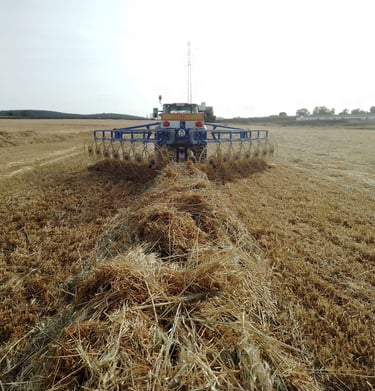

Model 770 / 772

7.45 metres (24' 7.27") working width.

Model 990 / 993

From 9 to 9.90 metres working width.

From 29' 6.33" to 32' 5.76" working width.

Model 980 / 983

From 8.60 to 9.50 metres working width.

From 28' 2.58" to 31' 2" working width.

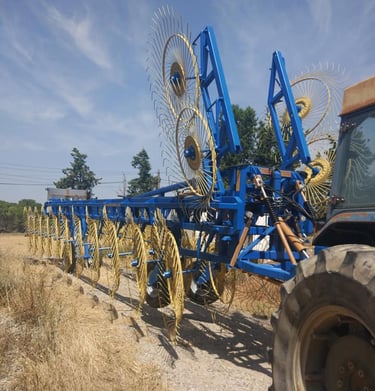

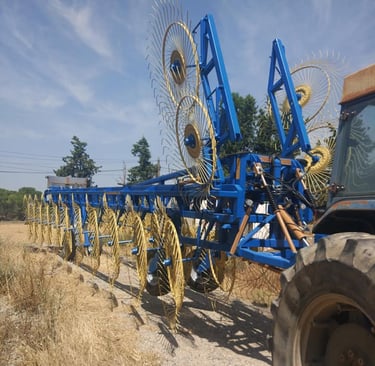

Model 11.10.0 / 11.10.3

From 10.20 to 12 metres working width.

From 33' 5.57" to 39' 4,44" working width.

→

→

→

→

Características comunes

Hydraulically adjustable from the tractor, suitable for all types of harvesters.
V-shaped chassis with three-point rotating tractor hitch with stabiliser.
Designed to prevent the machine from tipping over.
Sun wheels mounted on independent, oscillating arms that adapt perfectly to uneven terrain.
All models are designed so that the central sun wheels can be fitted if necessary.
All models (except the 770/772) are designed to accommodate at least simple extensions and increase the working width by 0.90 metres / 2' 11".
Exclusive folding system that is remotely operated from the tractor for safe and convenient transport.
Transport width 2.45 m / 8' 0.45".

What width do I need?

When we want to take three windrows from a mower conditioner, the formula will be as follows: (2*X)+1.5 metres.
Where X represents the total width of our mower conditioner.
For example: We have a 3-metre mower conditioner. We apply the formula (3*2)+1.5 = 7.50 metres. This distance would be the theoretical total between the first windrow and the third, so in this case a 772 model would be perfectly capable of handling all 3 windrows.

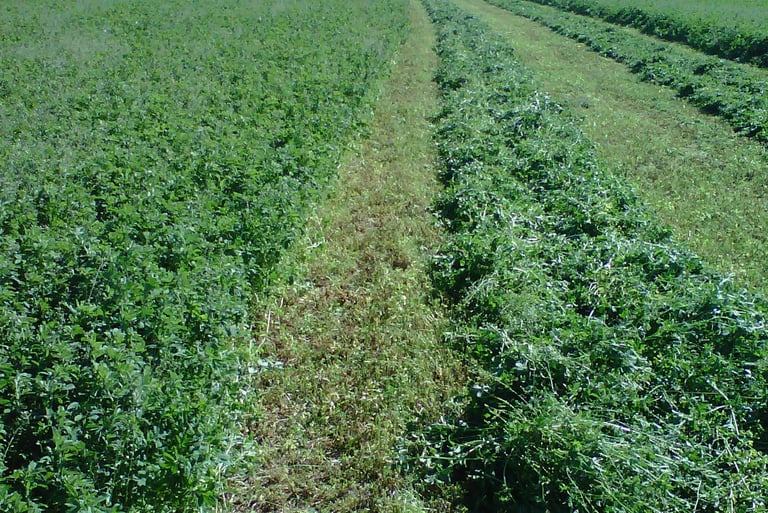

For fodder

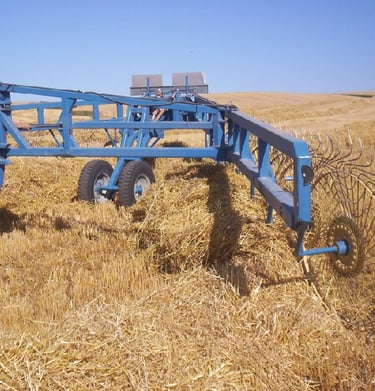

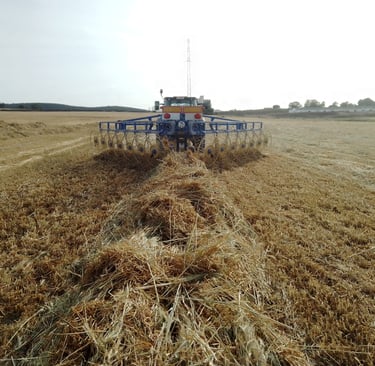

For straw

In general, we can only achieve two windrows, as the width of the harvester is bigger.
This calculation would be similar, but simpler: we would add 1.5 metres to the width of the harvester.
For example: We have harvester with a 6-metre cutting width. We will add 1.5 metres to calculate the required rake width. Therefore, 6+1.5 = 7.50 metres will be the theoretical distance between rows. This means that model 770 will be a perfect fit for us.

→

Segadora

Modelo Rastrillo

Cosechadora

Modelo Rastrillo

→

3 metre

3,50 metre

6 metre

7 metre

7,5 metre

8 metre

8,50 metre

9 metre

9,5 metre

Model 980 + ext. o

Model 990 + ext. o

Model 11100 + simple extensions

Modelo 11100 + double extensions
